Non-Rewireable Accessory Cable Flex Tester For Vehicle Connectors & Socket-Outlets

  • 1
  • 2
  • 3

Brand Name : Sinuo

Model Number : SNQC1009

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Customized

Payment Terms : T/T

Supply Ability : 10 Sets Per Month

Delivery Time : 30 Days

Packaging Details : Plywood

Drive Mode : Servo motor

Sample Clamping : Mechanical clamping, clamping position adjustable

Flexing Angle : 0–360° freely adjustable

Flexing Rate : 0–60 cycles/min, presettable

Load Weights : 20N, 25N, 50N, 75N, 100N, 120N, 140N, 180N

Power Supply : Three-phase AC 380V±10%, 50/60 Hz

Contact Now

Non-Rewireable Accessory Cable Flex Tester For Vehicle Connectors & Socket-Outlets

Product Overview

This flexing test apparatus is designed and manufactured in full compliance with the requirements of IEC 62196-1:2022 Clause 26.4 Table 14 and IEC 60309-1:2012 Clause 24.4 Figure 9, etc.

It is specially used to perform mechanical load flexing tests on non-rewireable accessories for vehicle plugs, socket-outlets and couplers.

Equipment Features

  • The equipment adopts PLC control with a 7-inch color touch HMI. Servo motor is applied to accurately control the flexing angle.
  • Flexing angle, flexing speed and test cycles can be preset on the touch screen, and the test runs automatically per the set parameters.
  • The equipment will stop automatically and give a prompt signal when the preset cycles are reached.
  • It features high-precision digital display, high-efficiency digital frequency conversion, precise speed regulation, 6-digit memory setting, multi-function modular fixture, rotation center alignment tool, and built-in load that can supply load voltage to the specimen during testing.

Technical Parameters

Test Station Single station
Control System PLC intelligent integrated control, 7-inch color touch HMI
Drive Mode Servo motor
Sample Clamping Mechanical clamping, clamping point adjustable
Flexing Angle 0-360° freely adjusted (default 90°, 45°on either side of vertical)
Flexing Rate 0-60 cycles / min, presettable
Flexing Cycles 0~999999 presettable (default:20000 cycles)
Load Weights 20N, 25N, 50N, 75N, 100N, 120N, 140N, 180N
Load Power Built-in; phase voltage between conductors: 0-250V adjustable; AC current: 0-400A adjustable (Note: for load >400A, external power is required)
Test Judgment Judged by on/off signal of current conduction
Equipment Dimensions & Weight L 850mm *W 800mm *H 1500mm; approx. 300Kg
Power Supply Three-phase AC 380V±10%, 50/60Hz

Product Details

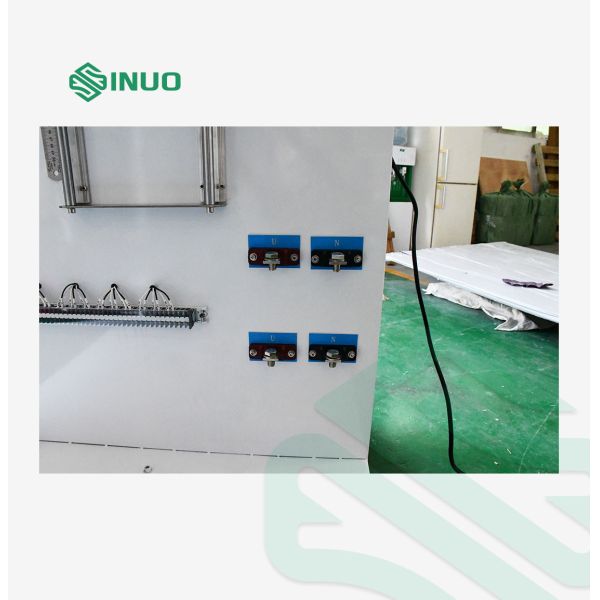

Non-Rewireable Accessory Cable Flex Tester For Vehicle Connectors & Socket-Outlets
Non-Rewireable Accessory Cable Flex Tester For Vehicle Connectors & Socket-Outlets
