IEC60529 IPX7 Waterproof Immersion Test Equipment Soaking Immersion Test System

Brand Name : Sinuo

Model Number : SN4410

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Customized

Payment Terms : T/T

Supply Ability : 30 sets/month

Delivery Time : 30 days

Packaging Details : Plywood Case

Chamber external size : W 1080* D 1080*H 2300mm

Chamber inner size : L 1000* W 1000* H1800mm

Observation window width : 200mm

Max. test water depth : 1.8m

Test content : IPX7

Inner chamber material : 2.0mm thickness stainless steel

External chamber material : Stainless steel plates + Aluminum profile frame

Observation window : Tempered glass (thickness: 12mm)

Contact Now

IEC60529 IPX7 Waterproof Immersion Test Equipment Soaking Immersion Test System

Complied Standards & Clauses

IEC 60529 degree of protection provided by enclosures (IP Code) of the IPX7, IEC60884-1, IEC60598-1.

Equipment Overview

This equipment is designed for IPX7 waterproof testing, specifically simulating immersion conditions to evaluate the water resistance of products. By performing the test, it verifies whether the waterproof level of the product meets the required standards. It is widely applied in product development, design validation, quality assurance, and factory inspection, ensuring reliable performance and compliance with international safety regulations.

Technical Parameters

Test content IPX7
Power supply AC 220V,50Hz, 1KW
Max. test water depth 1.8m
External chamber material Stainless steel plates + Aluminum profile frame
Observation window width 200mm
Chamber external size Approximately W 1080* D 1080*H 2300mm (including casters)
Chamber inner size Length 1000* W 1000* H1800mm
Water level adjustment method Water inlet / drain valve, manual adjustment
Water level display Scale (accuracy 1mm)
Test time 0.01 second-99.99hours can be preset
Inner chamber material 2.0mm thickness stainless steel

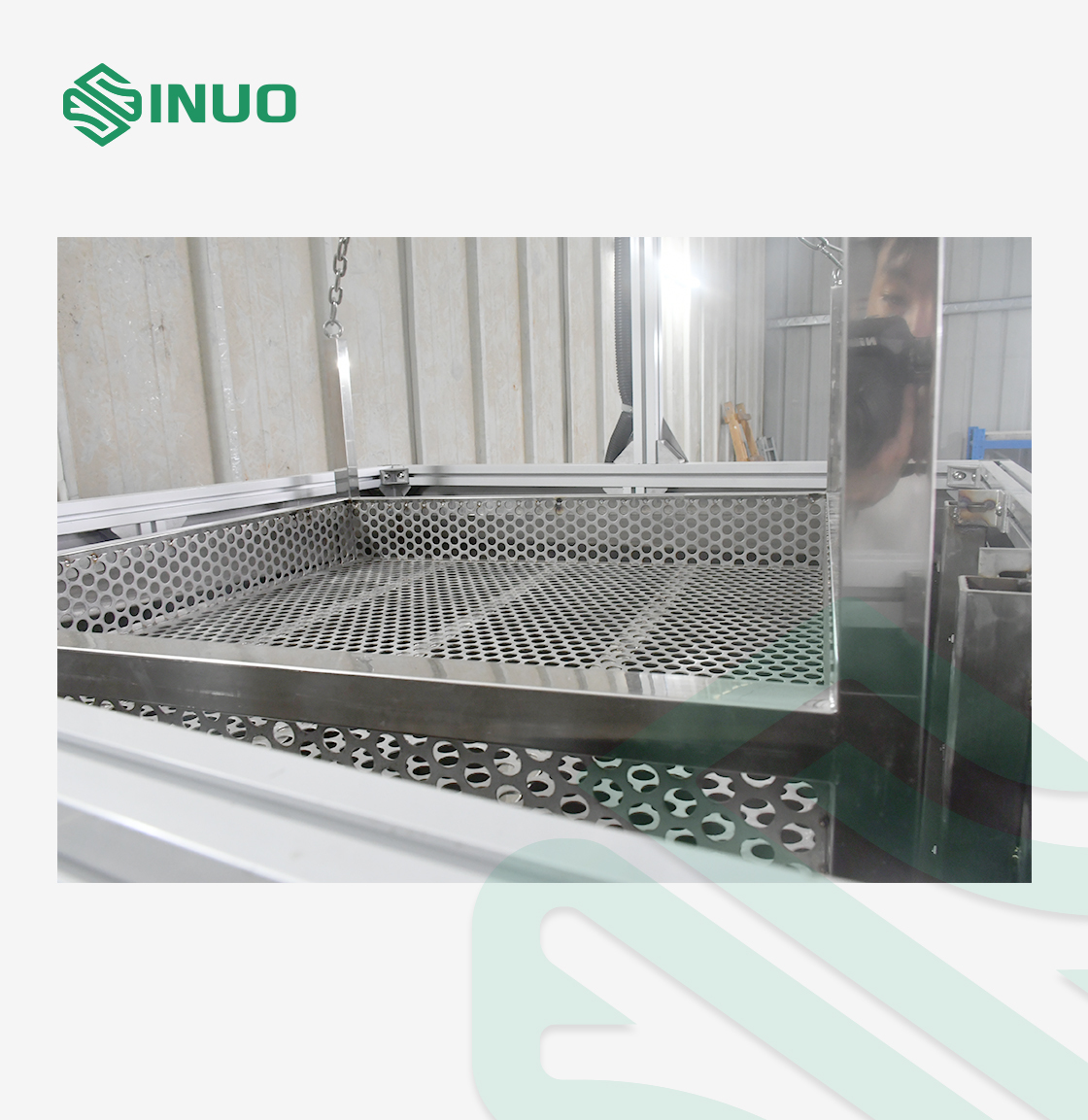

Electric lifting basket Made of stainless steel, controlled by electric hoist
Control method Buttons (non-PLC)
Immersion depth requirements

The lowest point of enclosure with a height less than 850 mm is located 1000mm below the surface of the water

The highest point of enclosure with a height equal to or greater than 850mm is located 150mm below the surface of the water
Observation window Tempered glass (thickness: 12mm)

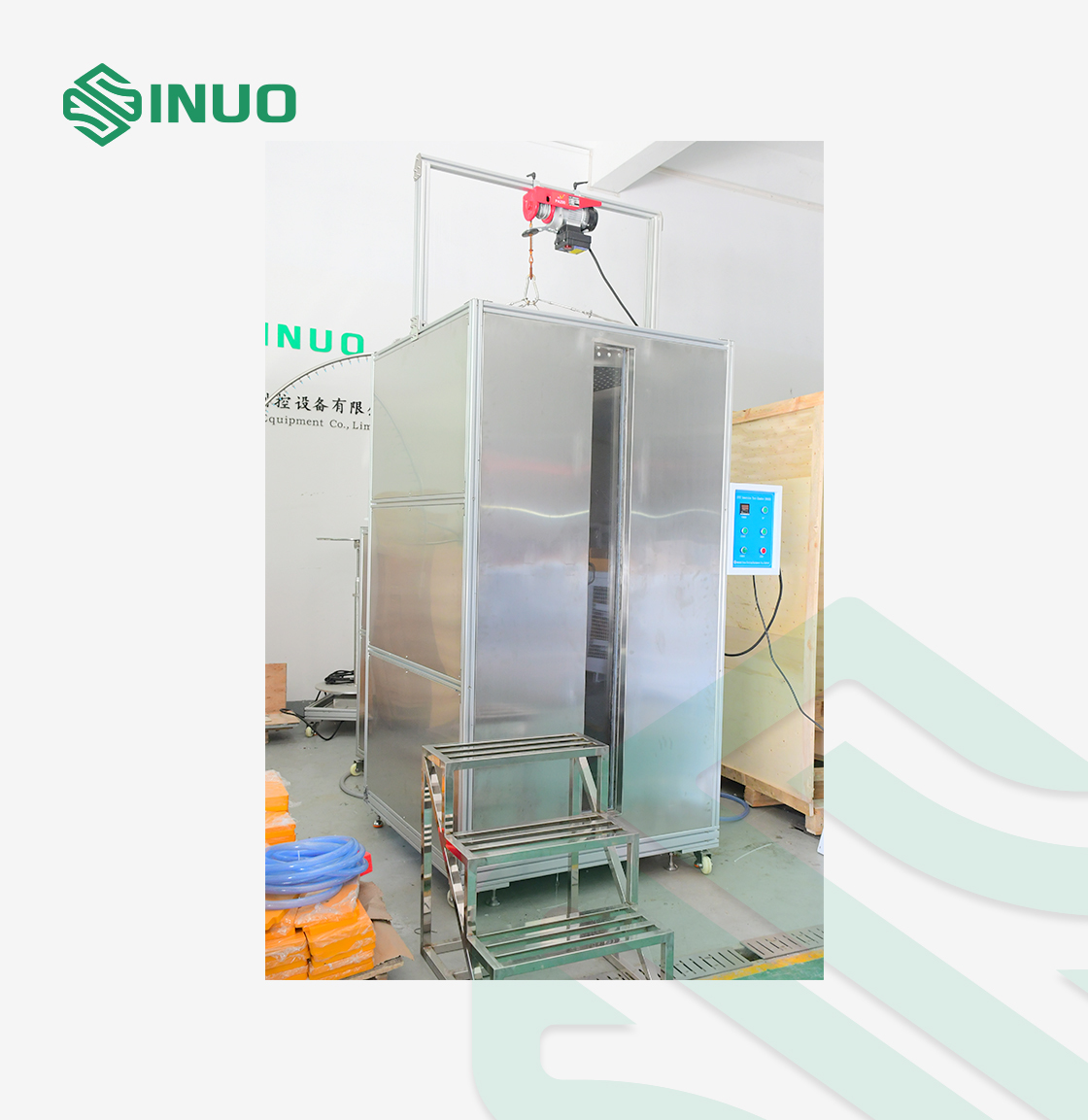

Details

IEC60529 IPX7 Waterproof Immersion Test Equipment Soaking Immersion Test SystemIEC60529 IPX7 Waterproof Immersion Test Equipment Soaking Immersion Test System
