IPX1/IPX2 Vertical Water Drop Test Chamber with 1000*1000mm Drip Area 0.4mm Drip Holes and 200mm Water Dripping Height

Brand Name : Sinuo

Model Number : SN442

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Supply Ability : 10 Sets Per Month

Delivery Time : 30 Days

Packaging Details : Export packing

Flow range : 0.667-4.167 L/min

Drip area : 1000*1000mm

Test flow : 1~1.5mm/min(IPX1), 3~3.5mm/min(IPX2)

Water dripping height : 200mm

Equipment body material : Industrial aluminum alloy

Test time : 1-9999 seconds

Control : PLC & 7” touch screen

Turntable : 1-5r/ min, can be set

Contact Now


IPX1/IPX2 Vertical Water Drop Test Chamber IEC60529 Water Protection Tester

Complied Standards & Clauses

This testing equipment is used to evaluate protection against vertically falling water. It is designed and built in compliance with the standard requirements of IEC60529 for IPX1 and IPX2, etc.


Product Overview

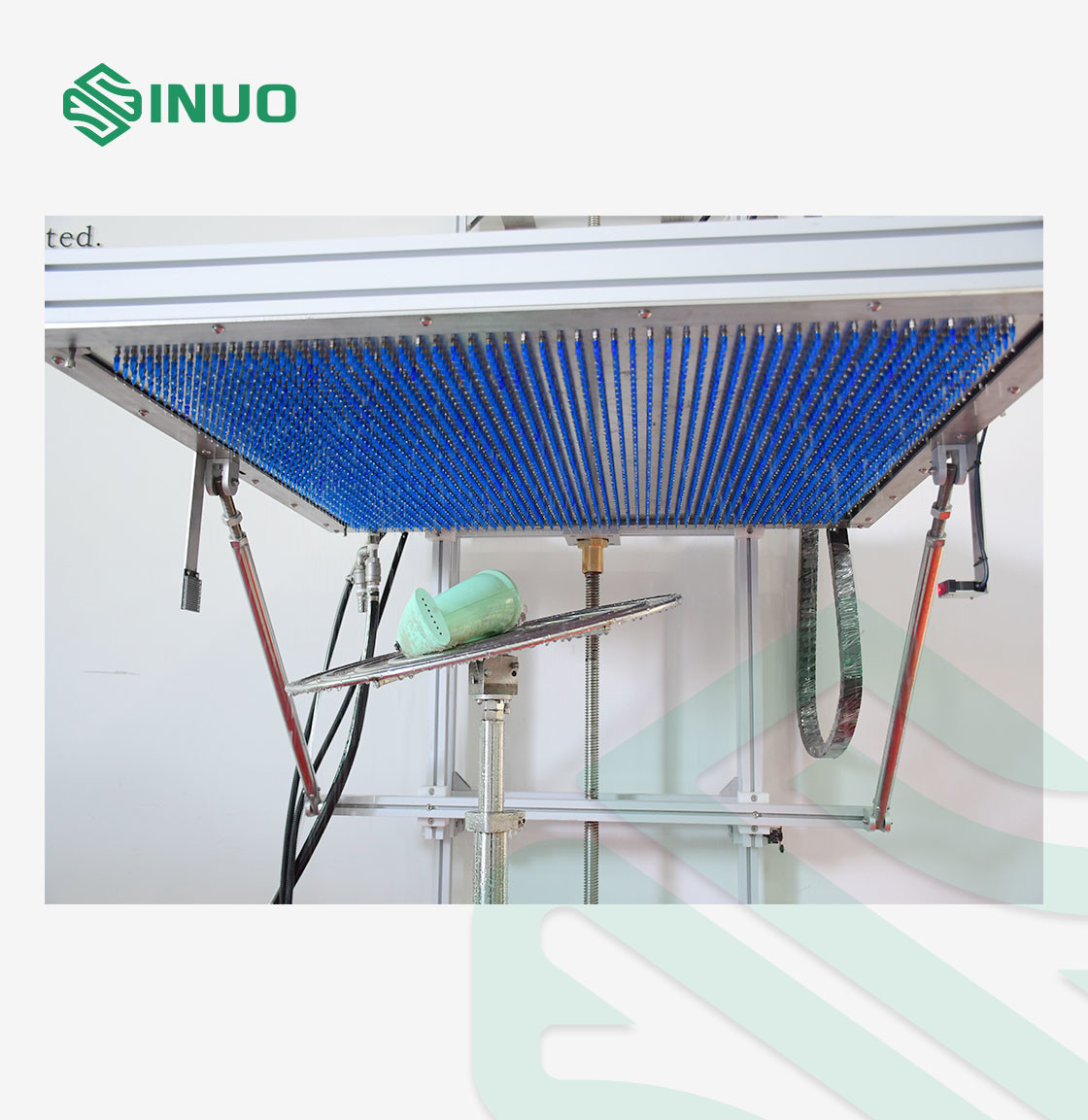

The vertical movement of the drip box is driven by a motor. The electrical control cabinet is equipped with a PLC and a touchscreen interface.

  1. Fine stainless steel filter for debris filtration.

  2. Utilizes compressed air (to be provided by the user) to clear water from the needles, preventing blockage caused by water-reactive substances or atmospheric conditions.

  3. Stainless steel standard medical needle nozzles, readily available and resistant to corrosion.

  4. Needle nozzles and their seats feature a tapered connection, allowing tool-free replacement; any individual damaged nozzle can be quickly replaced.

Technical Parameters

Item Specifications
Power supply of this equipment Three phase AC380V, 50Hz, 4KW
Power supply for test sample Single phase AC220V, 16A
LWGYD-4 flow rate Sensors Flow range: 0.667-4.167 L/min, pulse output
Small water pump Brand: South, model no.: CHL2-40, 380VAC, 50Hz, 0.55kw Protection class: IP55 Insulation class: F
Waterproof test range IPX1 test, IPX2 test, IPX1/IPX2 custom
IPX1-IPX2 Drip area: 1000*1000mm
Diameter of drip hole: 0.4mm
Distance between each two neighbor holes:20mm
Test flow:1~1.5mm/min(IPX1), 3~3.5mm/min(IPX2)
Test time Set according to the test standard (range 1-9999 seconds), the unit is: second
Water dripping height 200mm (automatically controlled by the test equipment)
Water Drainage Automatically emptying the tank water after the test is completed, should connected with an air source (the 0.6MPa compressed air source should be prepared by user)
Equipment body material Industrial aluminum alloy
Installation method Wall Mount
Turntable 1-5r/ min, can be set

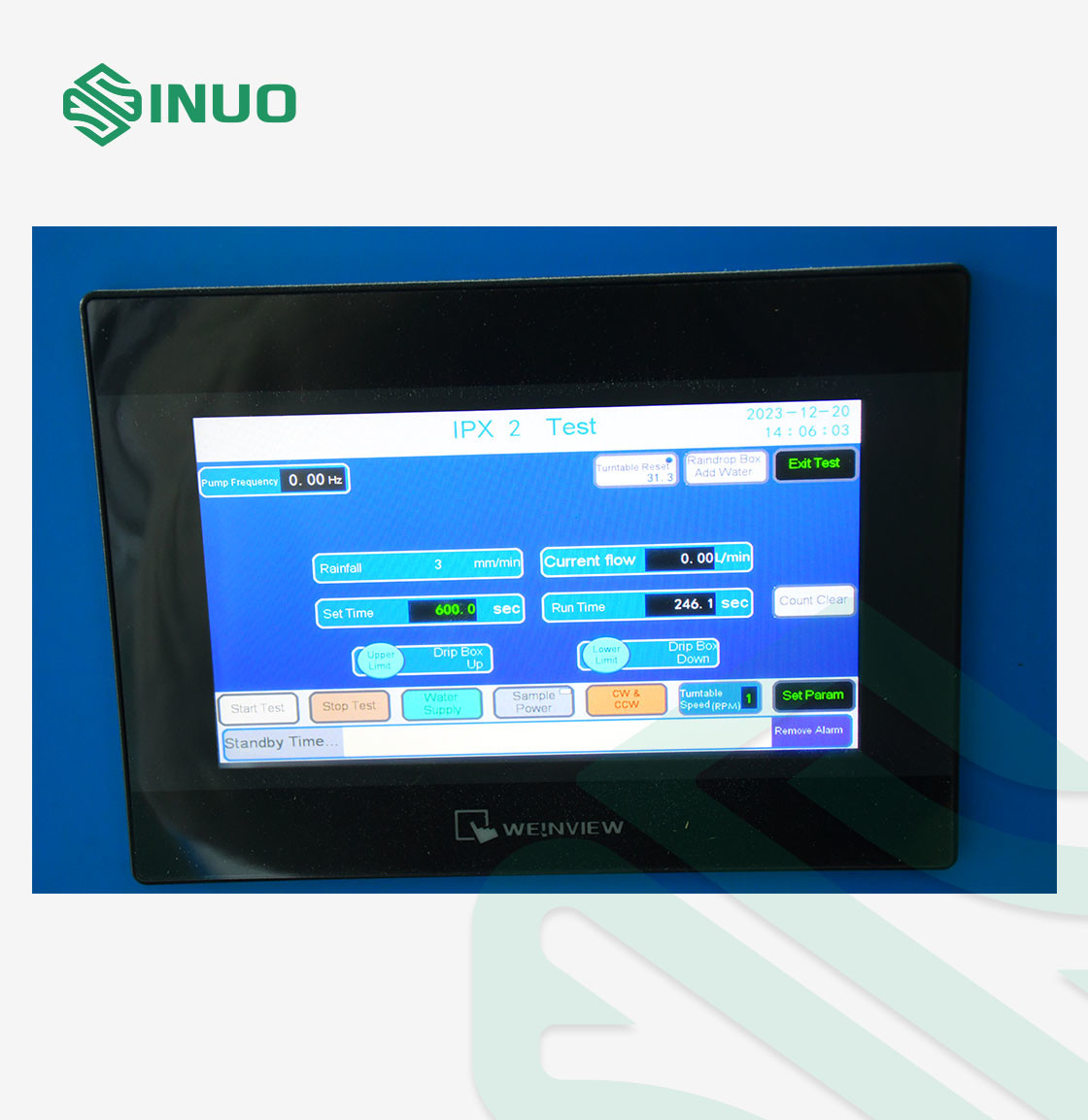

Control PLC & 7” touch screen

Details

IPX1/IPX2 Vertical Water Drop Test Chamber with 1000*1000mm Drip Area 0.4mm Drip Holes and 200mm Water Dripping HeightIPX1/IPX2 Vertical Water Drop Test Chamber with 1000*1000mm Drip Area 0.4mm Drip Holes and 200mm Water Dripping Height
