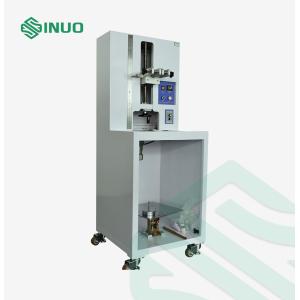

IEC 62196-1 EV Connector Testing Equipment Terminal Mechanical Tester

Name: IEC 621961 EV Connector Testing Equipment Terminal Mechanical Tester
Brand: Sinuo
Price: 1 USD

China IEC 62196-1 EV Connector Testing Equipment Terminal Mechanical Tester factory

Brand Name : Sinuo

Model Number : SNQC1012

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Supply Ability : 10 Sets Per Month

Delivery Time : 30 Days

Packaging Details : Export packing

Station : Single station

Equipment weight : 260kg

Casing diameter : 6.5~44.5mm

Rotation diameter : 75mm /76mm

Speed of work : 10±2 rpm, 9±1 rpm, adjustable

Height distance : 260~660mm

Control and operation methods : Electrical control, button operation

Equipment dimensions : 1000×700×1400（mm）W×D×H

Contact Now

IEC60884-1 Electric Vehicle Connector Terminal Mechanical 75mm Test Equipment

Complied Standards & Clauses

Conforms to IEC60884-1:2006 clause 12.2.5,clause 12.3.10 and figure 11, IEC60669-1:2007 clause 12.2.5,clause 12.3.10 and figure 10, IEC60998-2-2:2002 clause 10.105 and figure 101, UL486A-B:2009 clause 9.3.2.1,clause 9.3.2.3,clause 9.3.2.4 and table 26 and figure 6.

Product Overview

Samples and Restrictions:
Applicable to screw-type terminals, screwless terminals, and electrical connectors.
Application:
Used to evaluate whether screw-type and screwless terminals can endure the mechanical stress encountered during normal operation. It primarily assesses whether the design and structure of clamping-type terminal blocks prevent excessive damage to the wire during connection.
Test Principle:
The device utilizes a rail-guided screw mechanism. Test cycles can be preset before operation. Once the preset number is reached, the system automatically halts and triggers an audible alarm to indicate completion.

Technical Parameters

Power Supply	AC220V,50/60Hz
The range of counting number	1~9999(150 times (15 min) is by default.
Rate of Testing	(10±2) r/min
Rotating weight	0.4~70.3kg (details refer to following table 3)
The rotating diameter	75mm
The diameter of bushing hole (mm)	6.5,9.5, 13,14.5,15.9,19.1,22.2,25.4,28.6, 31.8, 38.1, 44.5mm (details refer to following table 3)
Height(H)(mm)	260-660mm
Size	790mmX400mmX1500mm
